The Future of Layout is Here
Introducing HP SitePrint. ESOS is bringing autonomous robotic layout to your site. Experience 10x faster speeds, 3mm accuracy, and details printed directly on the slab.
Request a DemoPrecision Meets Automation
Manual layout is labor-intensive, prone to human error, and hindered by a lack of skilled labor. HP SitePrint bridges the gap between the BIM model and the construction site.

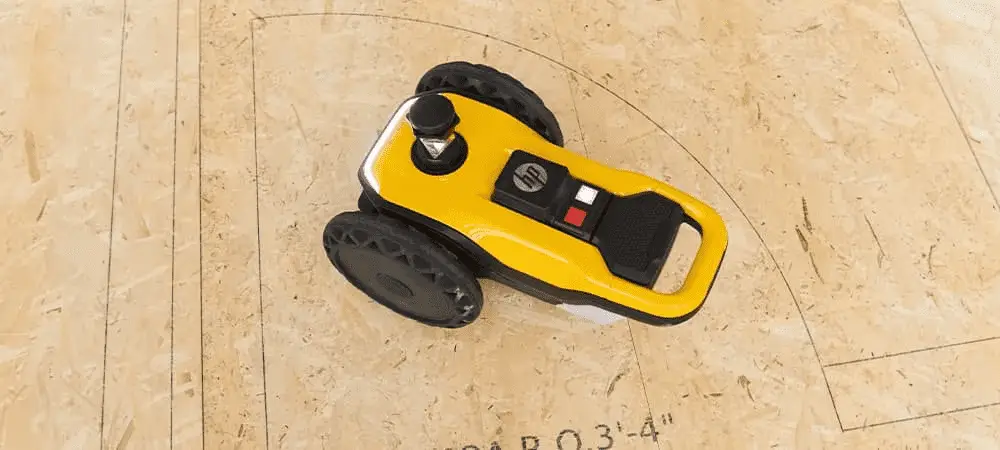

Equipped with a Robotic Total Station connection, the robot prints lines, arcs, and even 5.5 cm text notes directly onto the floor surface, reducing confusion for follow-on trades.
Technical Specifications
Engineered for the rugged reality of active construction sites.
Advanced Safety Sensors
Equipped with X4 Safety Sensors to detect declines (like stairwells) from 20cm away, and X3 LiDAR Sensors for 360° obstacle avoidance up to 45cm away.
Millimeter Accuracy
Paired with a Robotic Total Station, SitePrint achieves an accuracy tolerance of 3 mm. It handles complex geometries, curves, and arcs perfectly.
All-Terrain Design
Features big wheels and printhead tilt compensation to handle rough surfaces. No need for a broom-swept floor; it prints over debris and uneven slabs.
Porous Surfaces
Using Water-Based Inks (Black, Cyan, Magenta), we can print on:
- Rough Concrete
- Plywood / Timber
- Tarmac / Asphalt
- Brick & Block
Non-Porous Surfaces
Using Solvent-Based Inks (Blue, Red, Black), we can print on:
- Polished Concrete
- Vinyl Flooring
- Epoxy Resin
- Formwork Panels
Success Stories
Real-world results from major construction projects.
“On some of these decks we have 3,400 points… that is 3,400 times that someone needs to sit down and get back up. Taking all that work off our labor force in addition to the speed and cost savings, it is a no brainer.”
“It is going to save a lot of time and money on setting out, and the accuracy is just second to none… a complete game changer for us, especially when we have curved walls.”
Industrial Application: The Efficiency Gap
Comparison data based on a 5,300m² industrial project
| Metric | Traditional Crew (2 People) | HP SitePrint (1 Operator) |
|---|---|---|
| Crew Size | 2 Staff | 1 Staff |
| Total Job Time | 133 Hours | 42.8 Hours |
| Total Job Cost | £8,008 | £4,093 |
| Productivity | Manual Layout | 3x Faster / 50% Cost Savings |
Ready to optimize your workflow?
Contact ESOS today to see the HP SitePrint robot in action on your site.
